So why would you want to do it? Easy answer: because The Sharper Image sharper images are nice to look at; well-defined edges are more pleasing to the eye than wimpy ones. And it just so turns out that we've got a few AVISynth filters that are meant just for enhancement of edges such as those found in anime, as well as those that aren't but still work well for our purposes. So here are some of them.

It should be noted that DeHalo_Alpha is NOT actually a sharpener; it's meant to reduce haloing, an artifact some sharpeners can leave behind if you overdo it (though you may also have halos in your source video before any processing). I didn't feel quite right putting it on the spatial smoothers page. Also, you may notice that the well-known mfToon is not on the list. That's because, in its more recent incarnations, its name was changed first to vmToon and then to just Toon.
One last note: these sharpeners should always be applied AFTER you've smoothed your image with the filters on the previous pages. If you sharpen before smoothing, the sharpening can accentuate noise, making it harder for the smoothers to remove.

• depth (0-64 float) determines the amount of warping. It directly affects how thin your lines will end up.
• blurlevel (1-4) can "give a big boost to the warpsharpening" (MarcFD) for a given depth setting, at the expense of speed. If you find that the warping is distorting certain shapes too much, try lowering this parameter first.

• It has been reported that aWarpSharp can sometimes make straight lines curved. If you notice that this is a problem with your source, use the standard WarpSharp instead.
• It has also been reported that aWarpSharp can cause green garbage on edges at certain resolutions. Oftentimes, you would be cropping these edges out afterwards anyway; but if you have this problem and you really need the original edges for some reason, then look into the internal AVISynth functions StackHorizontal and StackVertical.

The difference is clear ClearEyes -- AND, would you believe that the warpsharpened image is actually MORE compressible than the original (shaved 32 KB off the size of the PNG)? Bet you didn't expect to read THAT anywhere on the sharpeners page.
As if that wasn't enough, this and other warpsharpeners can also help with dot crawl (though it's still better to use a dedicated dot crawl filter, such as DeDot, if possible; we'll get to those on a later page).

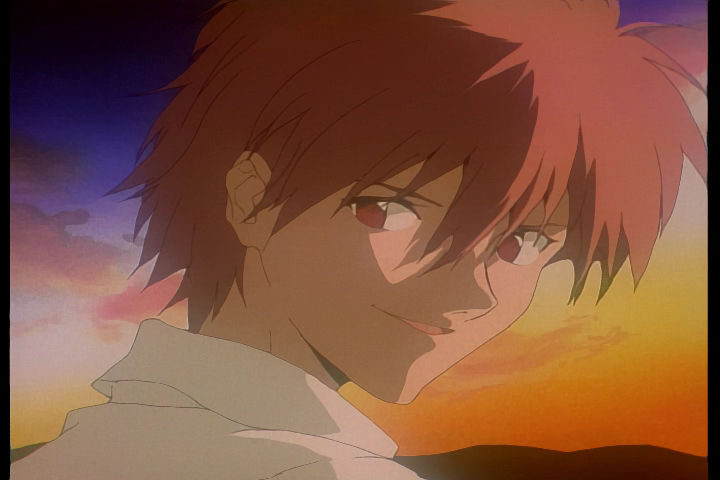

Something to watch out for: Unfortunately, it's easy to go overboard with warpsharpeners. Here is an example of what can happen when you do (settings: AWarpSharp(depth=50.0, blurlevel=2)). The lines are getting so thin as to almost disappear at points, and the warping is beginning to make some shapes break up; Kaoru's eyes in particular look odd. So for the love of Pen-Pen, watch your settings and please don't do this. Back to top

Defaults: DeHalo_alpha(rx=2.0, ry=2.0, darkstr=1.0, brightstr=1.0, lowsens=50, highsens=50, ss=1.5)
Parameters:

• rx and ry (any float > 1) are the factors by which the image is downsized (horizontally and vertically, respectively) in order to catch the halos. Higher values will catch more halos, but watch out for blocky artifacts. Reduce the values if you want a subtler dehaloing, but at 1 or lower, the effect is gone.
• darkstr and brightstr (any float > 0) determine how much the dark and bright pixels in the halos are brightened and darkened, respectively. So if the bright areas are still too bright, then raise brightstr, and vice versa. I wouldn't recommend going much higher than 3 on these; that's when things seem to start getting ugly.
• lowsens and highsens (any float > 0) are two parameters I haven't quite been able to work out. Best I can figure is that they seem to control the levels of influence of the downsized image and the normal image in determining the mask that is used for the dehaloing (to limit the image processing to edges only). If you turn up lowsens to 255 or higher, at which point the mask is derived completely from the downsized image, you'll see what I mean.
• ss (any float > 0) is the supersampling factor used near the end of the process. As usual, increasing this value will reduce aliasing but will slow the script down. You can also turn off the supersampling entirely by setting ss=1, which makes the filter 3+ times faster than the default settings. But don't go lower than 1, as it's pointless and the results are ugly.

Usage notes:

Haloing is what often happens when you oversharpen an image. If you see a large flat area of color that suddenly gets brighter when it gets right up against a dark edge, that's haloing. It's caused by what's known as "overshooting" in convolution-based sharpeners: the sharpener does its work by amplifying the difference between adjacent pixels, but if the difference makes (say) brightened pixels significantly brighter than their OTHER neighbors that were originally SUPPOSED to be the same color, then that's overshooting.

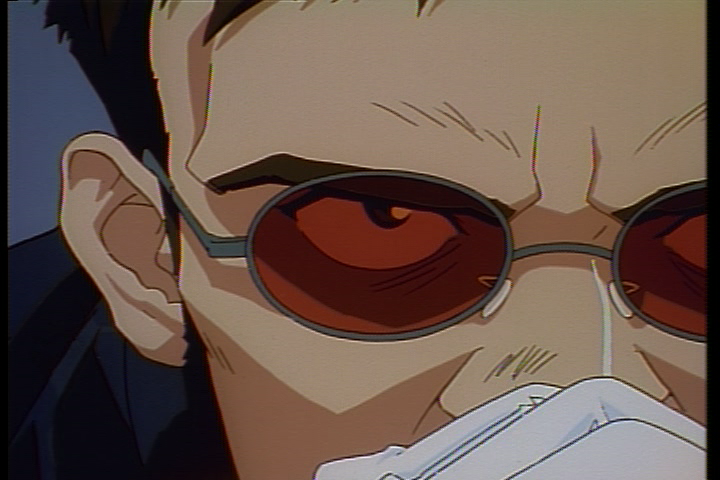

This is one of those filters whose effects can be much more easily seen than described in words, so here's a comparison frame, taken from episode 24 of Neon Genesis Evangelion with settings of DeHalo_alpha(brightstr=2, ss=2.0) (hover your mouse over to see the filtered version); I realize that this frame looks VERY familiar, but (happily) halos that naturally occur on DVDs are hard to come by with recent releases, so I figured I should use the first good example I found.

Look at the edges on Gendo's eyebrows, glasses, gloves, etc. and how the halos disappear (mostly) in the filtered version. Also, we've managed to trim down the lossless filesize somewhat. Like I said, though, you won't often find halos this bad on recent animé releases, so you'll probably find this filter most useful for placing after your OWN sharpening jobs... that is, if your sharpeners didn't correct for overshoot already.
Of course, one thing you may have noticed is that the dehaloing makes the image look blander and more boring. You may decide you prefer the slightly haloed look. Which is fine too, but I should reiterate that dehaloing also improves compressibility. Your choice. Back to top

• strength (0-256) determines the line darkening amount. It should be noted that this is the MAXIMUM darkening amount, so only the strongest lines get darkened this much. Weaker lines will be darkened proportionately less.
• luma_cap (0-255) can be useful if you have lighter lines on brighter backgrounds that you don't want darkened. Any pixel with luma value greater than luma_cap will be treated as if its value was equal to luma_cap. Reducing this value will darken fewer lines.
• threshold (0-255) determines the minimum darkening amount; any pixels that would have been darkened by less than this value are ignored. Lower this value if not enough pixels in the lines are getting darkened, or raise it if too many random pixels are getting darkened.
• thinning (0-256) determines how much to thin the lines being darkened, if at all. Setting this to 0 gives a big speed boost.

• If FastLineDarken generates too much aliasing, you may want to consider supersampling, in such a fashion as this: LanczosResize(1280,960).FastLineDarken().LanczosResize(640,480) (where obviously the arguments to the resizers should be changed to fit your source).

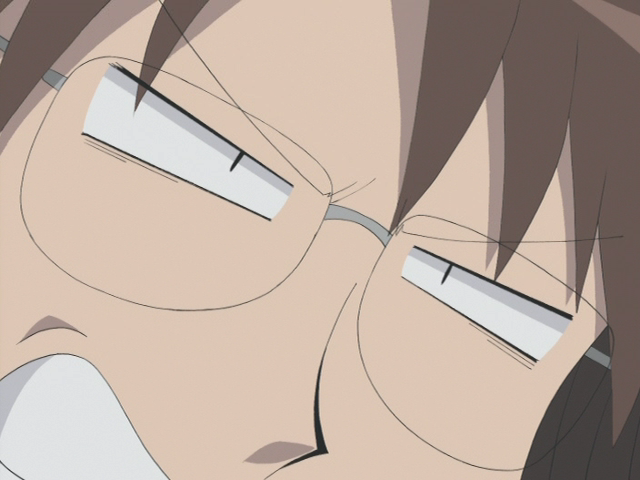

For this filter, we'll use a sample frame from episode 13 of Azumanga Daioh. This source doesn't require much smoothing, but the edges suffer from SERIOUS anorexia (I don't think any other source I've ever worked with has had thinner lines); and this, combined with a lack of definition on some of them, causes them to threaten to disappear sometimes. You'll see that we can use FastLineDarken to bring such lines out quite dramatically; settings for this one were FastLineDarken(strength=150,luma_cap=225,thinning=0) (hover over to view filtered version):

You can bet that THOSE lines won't get smeared by the encoder. Only problem is that FastLineDarken doesn't have any supersampling built in, so it can cause aliasing sometimes; this can be mitigated by adding some into your filter chain (resize up, darken, then resize back down). Back to top

(Note: This function has too many parameters to list here; I only give the most useful ones. If you're curious, check out the wiki page for a full listing.)
Defaults: LimitedSharpenFaster(ss_x=1.5, ss_y=1.5, dest_x=[clip width], dest_y=[clip height], strength=100, overshoot=1, undershoot=1, soft=0, edgemode=0)
Parameters:

• ss_x and ss_y (any float > 1.0) are the horizontal and vertical supersampling factors, respectively. Higher values will reduce aliasing, at the expense of speed.
• dest_x and dest_y (any int > 0) are the desired width and height of your clip, if you want to go straight to your final resolution without any more processing before the resize. If omitted, the clip will stay its original size.
• strength (any int > 0) is the sharpening strength. Simple.
• overshoot and undershoot (0-255) determine the maximum amount by which a sharpened pixel may be brighter than the brightest or darker than the darkest (respectively) of its spatial neighbours. This is the "limiting" indicated in the filter's name; if you raise these values too high, you lose that and may have haloing problems.
• soft (-1 to 100) softens the sharpening effect; setting this to -1 will have the filter select a value automatically, based on ss_x and ss_y.
• edgemode (-1 to 2) determines how the filter treats edges:
  • Edgemode = -1 will return the edge mask only, rather than the actual image.
  • Edgemode = 0 is normal operation.
  • Edgemode = 1 limits the filter to ONLY sharpen edges.
  • Edgemode = 2 does just the opposite, sharpening only NON-edges.

• If LimitedSharpenFaster generates too much aliasing, raise the values of ss_x and ss_y.

The following comparison shot comes from episode 2 of Hellsing (TV); the source looks good, but it's rather blurry. A simple LimitedSharpenFaster helps quite a bit to bring it into proper focus; however, for the purposes of demonstration, I decided once wasn't enough and elected to hit it TWICE with the filter, thus LimitedSharpenFaster(strength=200).LimitedSharpenFaster() (hover mouse over to see filtered version):

Gorgeous, ne? Of course, as with all such sharpeners, the price you pay is in compressibility -- but that's why we denoise and smooth the footage first. Back to top

Defaults: mfToonLite(strength=255, dstren=255, drange=64, dboost=1.0, dlimit=30, mask="fastest")
Parameters:

• strength (0-255) ... is actually pretty useless. The ONLY thing it does is allow reduction of the mask's maximum strength (controlled by dstren) if its value is anything other than the default of 255. I think mf got a little confused when he was adapting this from the original mfToon and forgot to have it actually do anything.
• dstren (0-255) determines how much of the sharpened version of the frame is allowed to show through on the edges (via the edge mask) in the final product.
• drange (0-255): Not used if mask="fastest". I'm not entirely sure about this, but it compresses the range of the values in the edge mask.
• dboost (0.1-10.0 float): Not used if mask="fastest". Not sure about this one either, but it boosts the areas of the mask marked as edges (or reduces them, if set < 1.0).
• dlimit (0-255): Not used if mask="fastest". Not sure about this one either, but this controls the final limiting step in the masking; any mask pixel above this value will be included in the edges portion of the mask.
• mask (any string) determines the procedure used to create the mask. If set to the default of "fastest", the filter will ignore drange, dboost, and dlimit and use a faster but less sophisticated masking. If set to anything else, the filter will use the aforementioned parameters to create a slower but more accurate (?) mask.

• It should go without saying, but there's no point to using both this and vmToon in the same script.

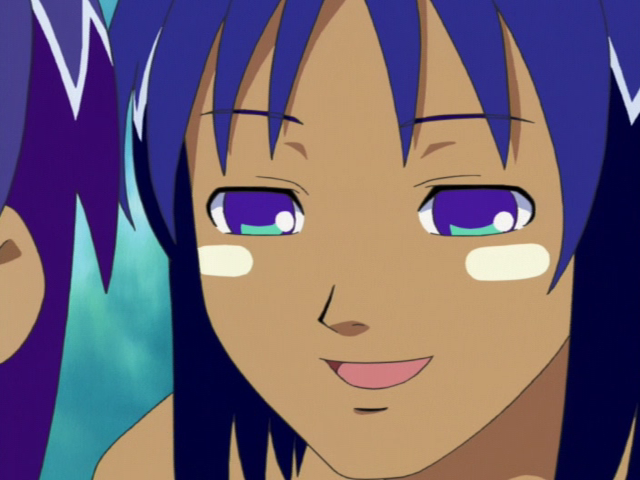

The following sample frame comes from Haré+Guu, with mfToonLite used at default settings (hover mouse over to view filtered version). It's easiest to see the differences in the hair, but all the other edges are enhanced as well.

Back to top

• threshold (0-255) determines how much of the image is determined to be edges (MSharpen will only sharpen areas it decides are edges). Lower the value to catch more, or raise it to catch fewer edges. Typically you want to set threshold so that all edges are sharpened, but no noise. You can see what areas are set to be preserved with the mask parameter...
• strength (0-100) determines how strongly to sharpen the areas marked as edges.
• mask (true/false), when set true, will display a detail mask of the current frame rather than the frame itself; dark areas of this mask are left alone, while bright areas are set as edges to be sharpened. How much of the frame is set as edges depends on how you set the threshold parameter. When set false, the filter displays the processed frame (normal operation).
• highq (true/false): Setting this to true will produce the best quality detail detection; setting it false sacrifices some quality but gets you a speed boost. But the filter is already pretty fast, so I would suggest leaving this one alone unless your script runs really slowly.

• If MSharpen generates too much aliasing, you may want to consider supersampling, in such a fashion as this: LanczosResize(1280,960).MSharpen().LanczosResize(640,480) (where obviously the arguments to the resizers should be changed to fit your source).

Our sample frame for this one comes from episode 3 of Princess Tutu; this is a series that is generally quite clean, but can be kind of soft in some scenes. You may think this frame looks pretty good as it is, but watch what happens when you roll your mouse over (settings were MSharpen(threshold=10,strength=140)):

Once you've seen the sharpened version once, you notice the difference, don't you? The original suddenly looks blurred and out of focus by comparison. The only problem is slight aliasing on some of the edges, but this can be mitigated by adding in supersampling, as described above. Back to top

• strength (0-100) determines the strength of the sharpening (up until the overshoot correction threshold, see below). Value of 100 will set all pixels to either their local min or max; value of 0 will make the filter do nothing.
• threshold (0-100) determines how close to the min/max a pixel can be sharpened before the overshoot correction (compression) kicks in. Higher values make the overshoot correction more of a hard limiting, while lower values soften the compression. Value of 0 makes the filter do nothing.
• ss_x and ss_y (any float > 0) are the horizontal and vertical supersampling factors, respectively. Higher values will reduce aliasing, at the expense of speed.
• dest_x and dest_y (any int > 0) are the desired width and height of your clip, if you want to go straight to your final resolution without any more processing before the resize. If omitted, the clip will stay its original size.

• If PSharpen generates too much aliasing, raise the values of ss_x and ss_y.

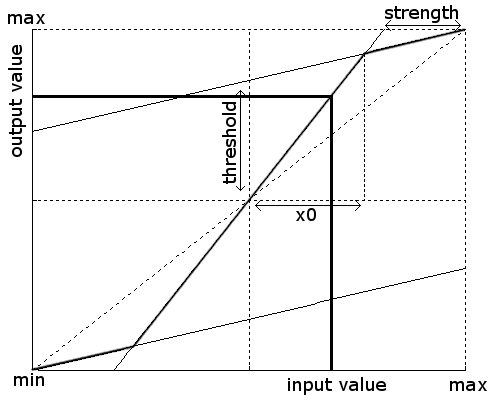

As I've mentioned, PSharpen starts work on each pixel by looking at each of its 8 spatial neighbour pixels and taking the minimum and maximum from those eight pixel values (luma only); this is why they call it a "two-point" sharpener. Depending on the values of strength and threshold, it then divides the spectrum between the local minimum and maximum into a range that gets expanded (around the midpoint) and two ranges that get compressed (around the min/max; see picture linked above).
Following this analogy (which should pose no trouble to those of you who've worked with dynamic range processors in audio -- it's basically a compander), strength determines the severity of the expansion and threshold controls the degree of the compression.
The two things you can be sure of with PSharpen: (1) each pixel will always end up farther away from the midpoint between its local min/max than it was before, and (2) each pixel will always remain within the range defined by its local min and max.

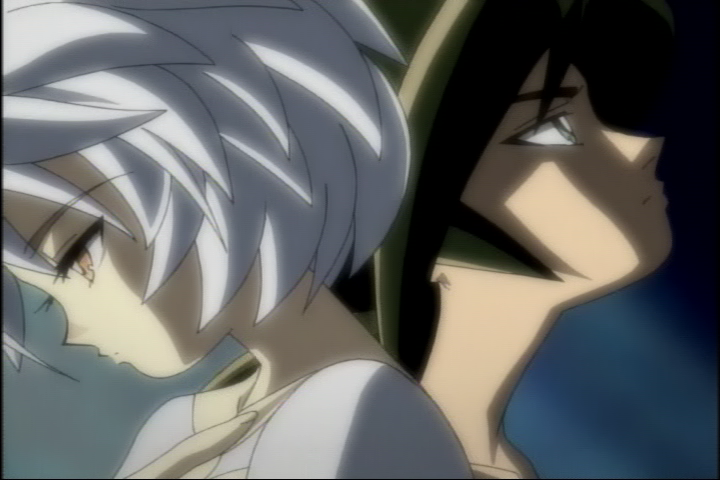

PSharpen operates on every pixel, but the effect in the following frame is most noticeable around the eyes; the rest is subtler. The frame is from Princess Tutu, and the arguments used were PSharpen(strength=90,threshold=90,ss_x=1.5,ss_y=1.5) (hover mouse over to view filtered version):

As with LimitedSharpenFaster, PSharpen calls can sometimes be stacked to good effect if you want a more dramatic sharpening than even the strongest settings can provide. Back to top

• ssw and ssh (any float > 0) are the horizontal and vertical supersampling factors, respectively. Higher values will reduce aliasing, at the expense of speed.
• xstren (0-255) determines how much of each pixel's original value is to be blended into the result, for those pixels that are to be sharpened at all. 0 does nothing; 255 does no blending (full strength).
• xthresh (0-255) determines how close a pixel must be to its min/max spatial neighbour in order to be sharpened. 0 does nothing; 255 hits every pixel.

• This function's exact functionality is included wholesale as part of vmToon, so there's no point to using them both in the same script.
• If SSXSharpen generates too much aliasing, raise the values of ssw and ssh.

The following frame comes from FUNimation's release of Fruits Basket, filtered with SSXSharpen(ssw=2,ssh=2) (hover mouse over to view filtered version). This time I picked a frame with a good bit of detail in the scenery, rather than yet another frame featuring dark outlines of characters, to show how this and similar sharpeners can improve your backgrounds.

Unfortunately, it really doesn't make sense to stack this filter -- it's so slow as to be impracticable. Back to top

• strength (0-1 float) determines the strength of the line darkening effect. The warpsharpening in Toon cannot be tweaked at all; in order to turn it off, use ToonLite instead.

• If you get aliasing on the edges when using Toon, or if the edges are coming out too thin, try using ToonLite instead (because it does not thin the lines).

So what does vmToon have that Toon does without? Well, as far as I can tell: Toon does not do any supersampling, it uses something besides XSharpen to do its sharpening, and it doesn't let you control the amount of line thinning (that is, short of disabling it completely by using ToonLite instead) or the thresholds for line detection or noise sharpening. Still, even though it's not as tweakable as its predecessor, Toon still produces a very usable result, and does it in a fraction of the time vmToon would have taken.

Again, I've selected a sample frame from Fruits Basket; this time, I had to make sure it DID have some outlines in it, as that's what this filter is supposed to target. All the outlines get darkened, but the effect is perhaps most obvious on Tohru's shirt. And to make it even better, the size of the lossless image has only increased by 4 KB! The setting was Toon(strength=0.75) (hover mouse over to view filtered version):

Stacking this filter is not recommended, as you can get some pretty ugly aliasing pretty fast, unless you stick to low settings of strength. Back to top

Defaults: NONE (will give an "Invalid arguments" error if you try calling it without any parameters!)
Recommended (for porn sharpening): UnFilter(HSharp=5, VSharp=5)
Parameters:

• HSharp and VSharp (-100 to 100) determine the amount of sharpening/smoothing to be done in the horizontal and vertical directions respectively. -100 gives the smoothest result, 100 the sharpest; 0 does nothing.

• Positive values of HSharp and VSharp will sharpen in the respective direction; negative values will smooth. So for sharpening purposes, you always want positive values; 100 is maximum sharpening while 0 is none at all.
• Frame width must be a multiple of 2, but if your video is YUY2 or YV12, this should be true already.

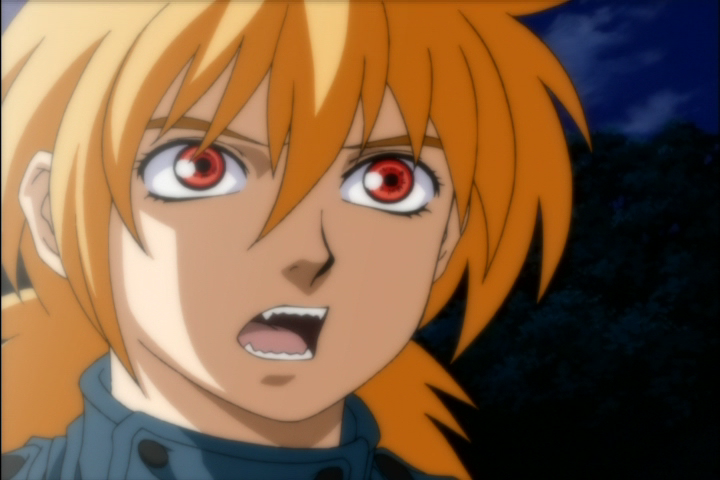

For example, look at this screencap from Hellsing (same episode I used for the LimitedSharpenFaster sample frame), filtered with just one pass of UnFilter(100,100) (hover mouse over to see filtered version). This would normally be considered an extreme setting, but for a source as blurry as Hellsing, it works nicely:

Come on, you gotta admit those edges are pretty hot. Back to top

• strength (0-255) determines the line darkening amount. It should be noted that this is the MAXIMUM darkening amount, so only the strongest lines get darkened this much. Weaker lines will be darkened proportionately less.
• luma_cap (0-255) can be useful if you have lighter lines on brighter backgrounds that you don't want darkened. Any pixel with luma value greater than luma_cap will be treated as if its value was equal to luma_cap. Reducing this value will darken fewer lines.
• threshold (0-255) determines the minimum darkening amount; any pixels that would have been darkened by less than this value are ignored. Lower this value if not enough pixels in the lines are getting darkened, or raise it if too many random pixels are getting darkened.
• thinning (0-255) determines how much to thin the lines being darkened, if at all. Setting this to 0 can give a big speed boost, but only if sharpen is set false.
• sharpen (true/false) determines whether or not to perform supersampled two-point sharpening (the sharpening code is straight outta Lynwood SSXSharpen). Setting this false gives a considerable speed boost.
• mask (true/false): If true, line darkening and thinning will only be applied to the parts of each frame detected as edges; if false, line darkening and thinning will affect the entire image. (This does not affect the two-point sharpening; that's always applied to either everything or nothing.)
• ssw and ssh (any int > 0) are the horizontal and vertical supersampling factors, respectively, for the two-point sharpening. Higher values will reduce aliasing, at the expense of speed. Only meaningful if sharpen=true.
• xstren and xthresh (0-255) are the strength and threshold, respectively, for the two-point sharpening. (For a detailed explanation, see the writeup for SSXSharpen, above.) Only meaningful if sharpen=true.

• It should go without saying, but there's no point to using both this and mfToonLite, or both this and SSXSharpen, in the same script.
• If vmToon generates too much aliasing, raise the values of ssw and ssh.

NOTE: I've been informed that the Toon filter, discussed above, is actually the latest evolution of the mfToon/vmToon series. However, I'm keeping vmToon here for those who prefer to tweak and experiment. If you want something simpler (but less tweakable) and much faster, use Toon instead.

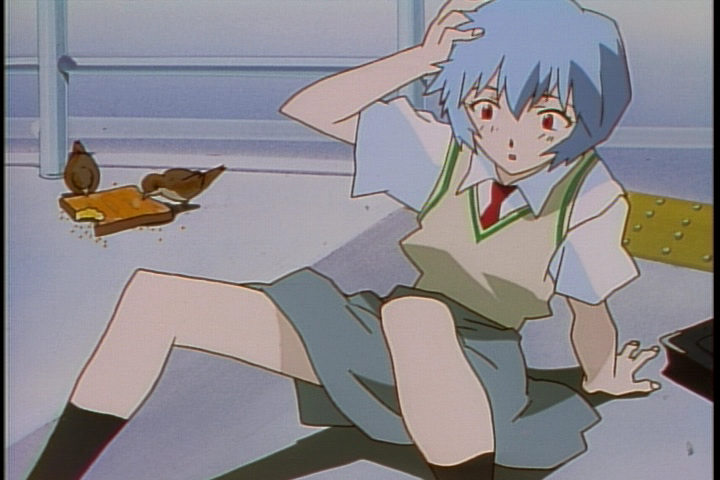

For the following screencap, we revisit again A.D. Vision's original (not Platinum, that is) R1 release of Neon Genesis Evangelion, which has long been generally agreed to be an awful source to work with. As you will see, in addition to all the noise we attempted to clean up on the spatial smoothers pages, the rainbows we'll tackle on the rainbow removal page, and the horrific frame blending which is beyond the scope of this guide, the show could also benefit from some sharpening and edge enhancement.
The frame was filtered with vmToon(strength=100, luma_cap=150, threshold=2, thinning=100, ssw=3,ssh=3) (hover your mouse over to see the filtered version):

Would you believe that the sharpened lossless image is only 4% bigger, filesize-wise, than the original? The results speak for themselves; notice how even the background details, such as where the railing meets the ground, have been improved. The only bad thing about the sharpened image is that the line running down the left side of the frame, apparently a bad haloing artifact from the original crappy transfer, has been darkened; we didn't want that. This can be fixed by carefully tweaking luma_cap, or else by just cropping the stupid thing out like you probably would have done anyway. :P Back to top

• depth (1-400) determines the amount of warping. It directly affects how thin your lines will end up.
• blur (any int > 0) is the number of times to blur the sharpened areas. The higher this value, the cleaner the sharpening will be (this can be very useful at higher depth levels), but at the cost of speed. Normally, you do not want to set this to 0; try it and you'll see why.
• bump (any int > 0) is the "threshold of unevenness detection"; lowering this value will produce smoother lines, but it will also reduce the sharpening effect. Even at default levels of depth, setting this above about 250 or so can distort your footage in ugly ways and is not recommended.

This filter is a clone of the original WarpSharp filter for VirtualDub, written by Avery Lee and modified to be able to be imported into AVISynth by Donald Graft (neuron2). Some Japanese people, names unknown (though you can find their website listed above), turned it into a dedicated AVISynth filter, as part of a plugin package. It appears they added a parameter or two while they were at it.
For those of you who came in late and didn't read this under the writeup for aWarpSharp, warpsharpening is a sharpening method that differs from normal convolution-based sharpening in that it actually warps the image, expanding large flat areas and thinning lines.

For this filter, I finally decided I was sick of using the original (non-Platinum) R1 release of Neon Genesis Evangelion... and so I switched to the remastered (Platinum) version instead. :P Though it's pure heaven compared to the original source, its edges can still be a little fat for my tastes. So here's a screenshot from episode 5, filtered with WarpSharp() (default settings; hover mouse over to view filtered version):

And once again, just as with aWarpSharp, I'm happy to report that the sharpened lossless image is actually smaller than the original -- not by much, but still a far sight better than most convolution-based sharpeners. The edges are nice and slim (but not disappearing), Shinji's about to get bitchslapped, and all is right with the world. :)

Something to watch out for: Same warning as applied to aWarpSharp applies to this one: it's easy to go overboard with warpsharpeners. Here is an example of what can happen when you do. The lines are getting so thin as to almost disappear at points, and the warping is beginning to make some shapes break up; Kaoru's eyes in particular look odd. So for the love of Pen-Pen, watch your settings and please don't do this. Back to top
